Adjustable Modular LED downlight D100
Features:
1. Compatible with MR16.
2. The Kit includes a flicker-free driver and a die-casting aluminum integrated cooling radiator and solid mounting clips. The housing is finished with an internal reflector and tempered glass that provides glare free and uniform light distribution.
3. The housing is IP20 and completely closed so that insects can not penetrate.
4. With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications.
Specification
| Model | LL-DL100-MR16-01 | |||
| Power | 5W | 8W | 10W | 15W |
| Product Dimension | D100*H100mm | |||
| Cut out | 90mm | |||
| Input | AC200-240V / AC90-130V | |||
| Dimmable | DALI, TRIAC, O/1-10V, DMX, RF, ZigBee | |||
| Luminous Efficacy | 90-110M/W | |||
| PF | >0.95 | |||
| LED Type | Bridgelux | |||
| LED Q‘ty | COB | |||
| CCT(K) | 2700K/3000K/4000K/5000K/6000K | |||
| CIR(Ra) | 80/90 | |||
| Beam angle | 15° / 24° / 38° / 60° | |||
| Working Temperature | -20℃～45℃ | |||
| Storage Temperature | -20℃～45℃ | |||
| Head Adjustable | Adjustable | |||
| Housing color | White + Black | |||
| IP Grade | IP20 | |||
| Body Materials | ADC12 die-casting aluminum alloy | |||
| Certificate | CE, Rohs | |||

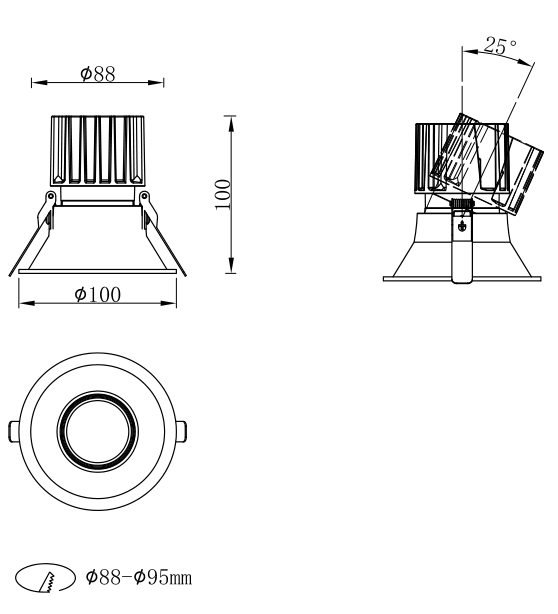

Size:
Unit: mm
Application:
LED downlight is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
